Collision Logic Classes#

This page contain collision-related components shared between the Space-Time Circuits and LQLGA Circuits algorithms. Collision in these algorithms is based on the concept of equivalence classes described in Section 4 of [1], and follows a PRP (permute-redistribute-unpermute) approach. All components of this module may be used for different variations of the Computational Basis State Encoding (CBSE) of the velocity register. The components of this module consist of:

Collision Logic Classes classes that provide information about the lattice discretization and equivalence classes.
Collision Components that implement the small parts of the collision operator.

Collision Logic Classes#

class qlbm.lattice.spacetime.properties_base.LatticeDiscretization(value, names=<not given>, *values, module=None, qualname=None, type=None, start=1, boundary=None)[source]#

The Lattice Boltzmann discretization used in the simulation.

The only supported discretizations currently are D1Q2 and D2Q4.

class qlbm.lattice.spacetime.properties_base.LatticeDiscretizationProperties[source]#

Class containing properties of the lattice discretization in the \(D_dQ_q\) taxonomy.

Attributes#
Attribute	Description
`num_velocities`	The number of velocities in the discretization. Stored as a `Dict[LatticeDiscretization, int]`.
`velocity_vectors`	The velocity profile each of the \(q\) velocity channels. Each vector is \(d\)-dimensional and each entry represents the velocity component of the channel in a particular dimension. Stored as a `Dict[LatticeDiscretization, numpy.ndarray]`.

class qlbm.lattice.eqc.EquivalenceClass(discretization, velocity_configurations)[source]#

Class representing LGA equivalence classes.

In qlbm, an equivalence class is a set of velocity configurations that share the same mass and momentum. For a more in depth explanation, consult Section 4 of [1].

Constructor Attributes#
Attribute	Description
`discretization`	The `LatticeDiscretization` that the equivalence class belongs to.
`velocity_configurations`	The `Set[Tuple[bool, ...]]` that contains the velocity configurations of the equivalence class. Configurations are stored as `q`-tuples where an entry is `True` if the velocity channel is occupied and `False` otherwise.

Class Attributes#
Attribute	Description
`mass`	The total mass of the equivalence class, which is the sum of all occupied velocity channels.
`momentum`	The total momentum of the equivalence class, which is the vector sum of all occupied velocity channels multiplid by their `LatticeDiscretizationProperties` velocity contribution.

Parameters:

discretization (LatticeDiscretization)
velocity_configurations (Set[Tuple[bool, ...]])

class qlbm.lattice.eqc.EquivalenceClassGenerator(discretization)[source]#

A class that generates equivalence classes for a given lattice discretization.

Constructor Attributes#
Attribute	Description
`discretization`	The `LatticeDiscretization` that the equivalence class belongs to.

Example usage:

from qlbm.lattice import LatticeDiscretization
from qlbm.lattice.eqc import EquivalenceClassGenerator

# Generate some equivalence classes
eqcs = EquivalenceClassGenerator(
    LatticeDiscretization.D3Q6
).generate_equivalence_classes()

print(eqcs.pop().get_bitstrings())

Parameters:: discretization (LatticeDiscretization)

Collision Components#

class qlbm.components.common.EQCPermutation(equivalence_class, inverse=False, logger=<Logger qlbm (WARNING)>)[source]#

Applies a permutation to the velocity qubits of an equivalence Sclass in the CBSE encoding.

This is used as part of the PRP collision operator described in section 5 of [1]. Utilized in the EQCCollisionOperator.

Attribute Summary
`equivalence_class`	The equivalence class of the operator.
`inverse`	Whether to apply the inverse permutation.

Example usage:

from qlbm.components.common import EQCPermutation
from qlbm.lattice import LatticeDiscretization
from qlbm.lattice.eqc import EquivalenceClassGenerator

# Generate some equivalence classes
eqcs = EquivalenceClassGenerator(
    LatticeDiscretization.D3Q6
).generate_equivalence_classes()

# Select one at random and draw its circuit

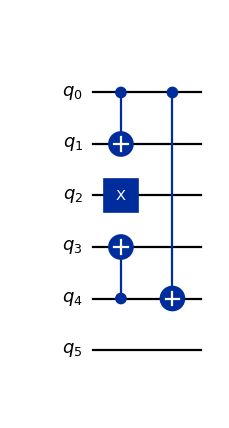

EQCPermutation(eqcs.pop(), inverse=False).circuit.draw("mpl")

(Source code, png, hires.png, pdf)

Parameters:

equivalence_class (EquivalenceClass)
inverse (bool)
logger (Logger)

class qlbm.components.common.EQCRedistribution(equivalence_class, decompose_block=True, logger=<Logger qlbm (WARNING)>)[source]#

Redistribution operator for equivalence classes in the CBSE encoding.

The operator is mathematically described in section 4 of [1]. Redistribution is applied before and after permutations, and consists of a controlled unitary operator composed of a discrete Fourier transform (DFT)-block matrix.

Attribute	Summary
`equivalence_class`	The equivalence class of the operator.
`decompose_block`	Whether to decompose the DFT block into a circuit.

Example usage:

from qlbm.components.common import EQCRedistribution
from qlbm.lattice import LatticeDiscretization
from qlbm.lattice.eqc import EquivalenceClassGenerator

# Generate some equivalence classes
eqcs = EquivalenceClassGenerator(
    LatticeDiscretization.D3Q6
).generate_equivalence_classes()

# Select one at random and draw its circuit in the schematic form

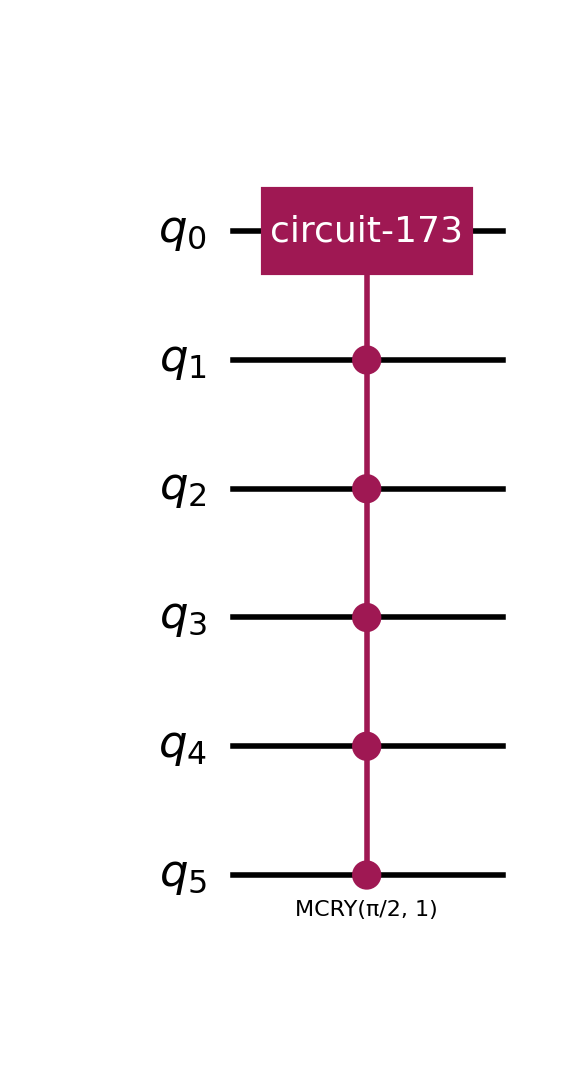

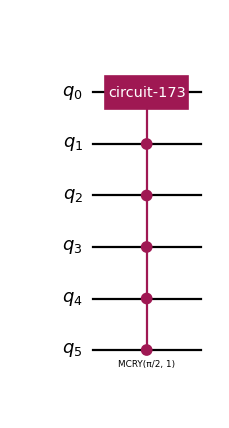

EQCRedistribution(eqcs.pop(), decompose_block=False).circuit.draw("mpl")

(Source code, png, hires.png, pdf)

The decompose_block parameter can be set to True to decompose the DFT block into a circuit:

from qlbm.components.common import EQCRedistribution
from qlbm.lattice import LatticeDiscretization
from qlbm.lattice.eqc import EquivalenceClassGenerator

# Generate some equivalence classes
eqcs = EquivalenceClassGenerator(
    LatticeDiscretization.D3Q6
).generate_equivalence_classes()

# Select one at random and draw its decomposed circuit
EQCRedistribution(eqcs.pop(), decompose_block=True).circuit.draw("mpl")

(Source code, png, hires.png, pdf)

Parameters:

equivalence_class (EquivalenceClass)
decompose_block (bool)
logger (Logger)

class qlbm.components.common.EQCCollisionOperator(discretization)[source]#

Collision operator based on the equivalence class abstraction described in section 5 of [1].

Consists of a permutation, redistribution, and inverse permutation of the velocity qubits. This operator is designed to be applied to a single velocity register, which can be repeated depending on the encoding. Used in the GenericSpaceTimeCollisionOperator and GenericLQLGACollisionOperator.

Attribute	Summary
`discretization`	The discretization for which this collision operator is defined.
`num_velocities`	The number of velocities in the discretization.

Simple D2Q4 example usage:

from qlbm.components.common import EQCCollisionOperator
from qlbm.lattice import LatticeDiscretization

# Select a discretization and draw its circuit

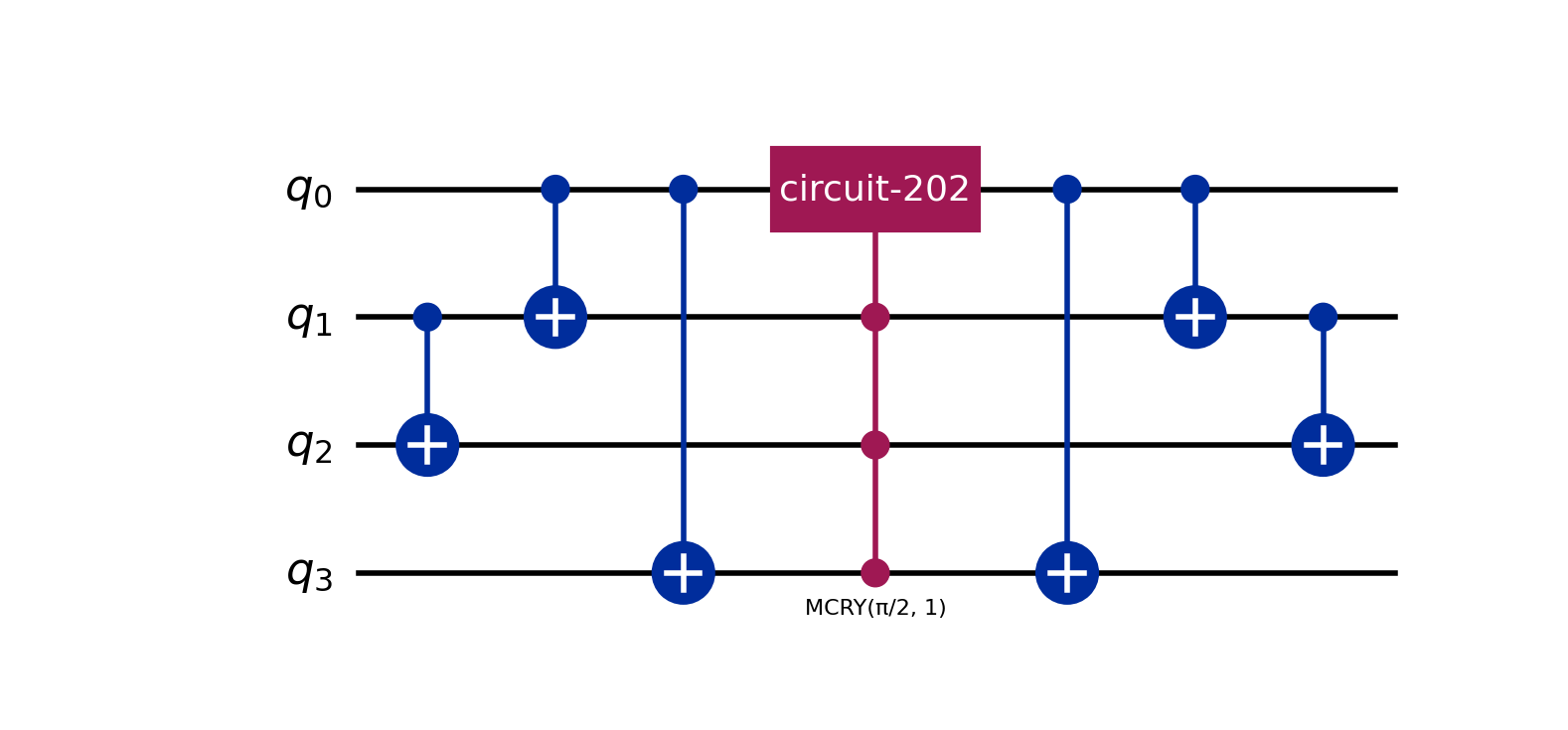

EQCCollisionOperator(
    LatticeDiscretization.D2Q4
).draw("mpl")

(Source code, png, hires.png, pdf)

More complex D3Q6 example usage:

from qlbm.components.common import EQCCollisionOperator
from qlbm.lattice import LatticeDiscretization

# Select a discretization and draw its circuit

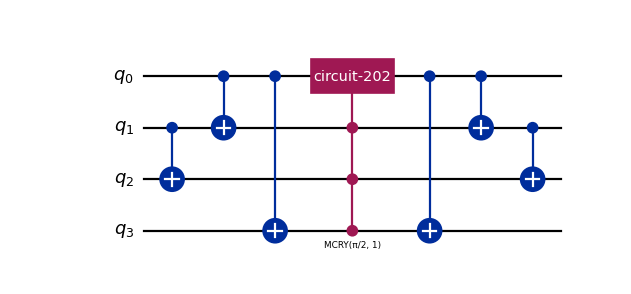

EQCCollisionOperator(
    LatticeDiscretization.D3Q6
).draw("mpl")

(Source code, png, hires.png, pdf)

Parameters:: discretization (LatticeDiscretization)
